The SRtP (Safe Return to Port) rules was introduced by the IMO (International Maritime Organization) in 2010 with the objectives to set the minimum requirements for “essential systems” in order that ships are able to return automatically to the nearest port in case of emergency due to fire, leak or malfunction.
The UHF radio communications system is part of the “essential systems” for the safety of board. In case of emergency it must survive to the various events and must continue to operate – even though in a reduced way – both in terms of number of channels available that with any service limitation in some areas.
Novelradio for over 10 years with its own organization and in close cooperation with the Fincantieri area technique, has designed and built the first on board radio communication system meeting the requirements of SRtP legislation for Fincantieri Company.

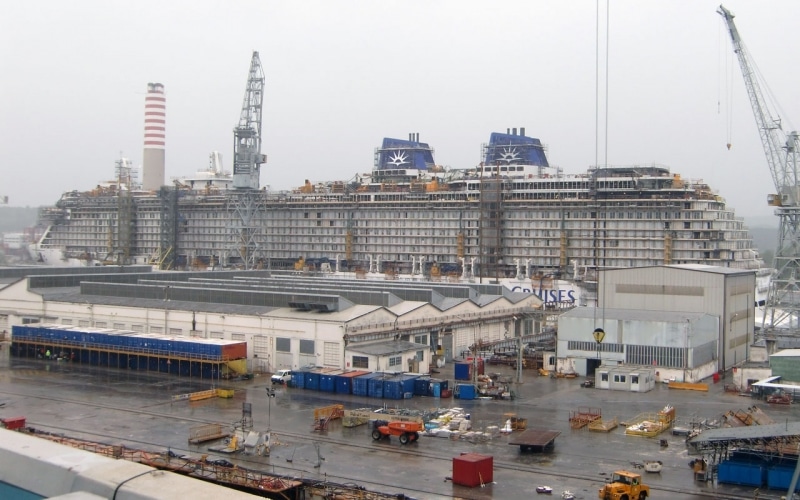

Royal Princess ship enters service in June 2013 and it was the first ship equipped with the UHF radio communications system with SRtP radiating cable and has been submitted to final testing by the Lloyd’s Register Marine Certifying.

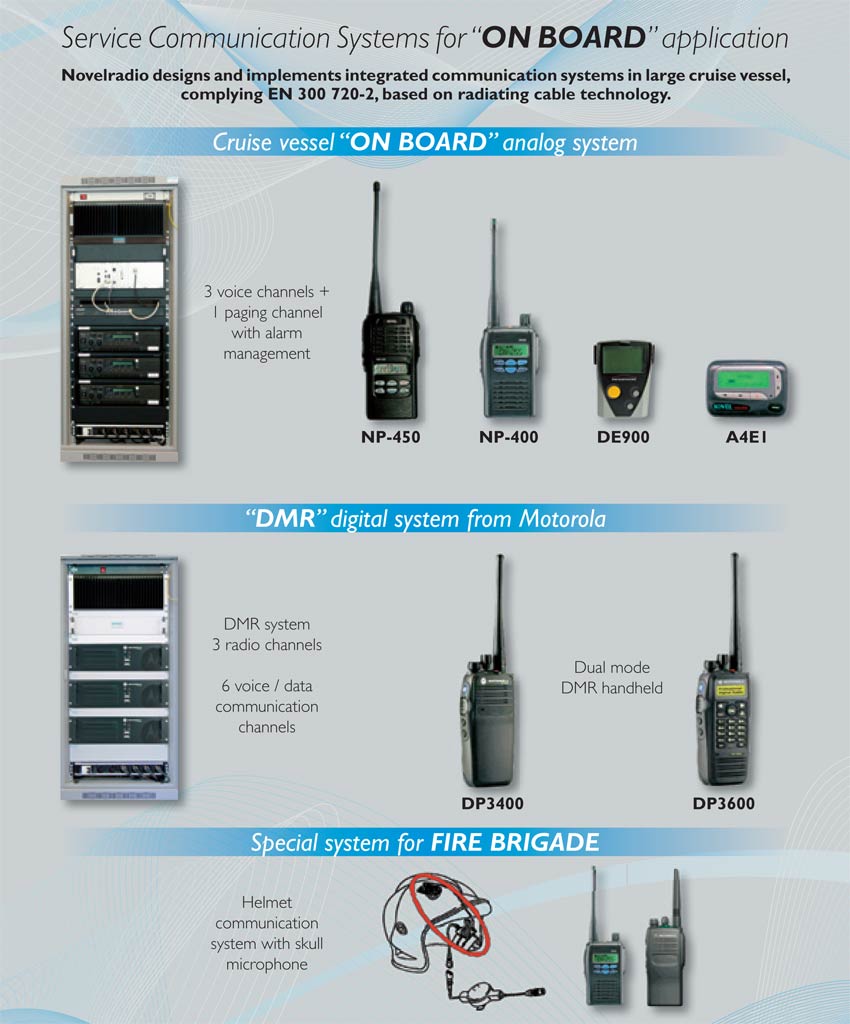

The UHF ON-BOARD radio communications system can be realized in analog or digital technology and may also provide an integrated paging service.
The peculiarity of this system is based on an architecture made with distributed and redundant elements fit to ensure communications even in case of multiple failures of different nature (flood, fire, mechanical failures) especially in the most critical operating areas.
The difference between the PMR and DMR technologies is essentially the number of contemporaneous communications that for analog systems are at most five (equal to pairs of frequencies allocated to 12.5 KHz of UHF On-Board frequency band) and ten communication with DMR digital technology.
The realization and maintenance of the above systems is carrying out by Novelradio, with its own organization, providing:
- Specific design based on the ship size
- Technical documentation and implementation
- Supply of material and equipment for the system realization
- Network and equipment installation
- Operational staff training
- Commissioning and testing certification
- On-line remote assistance and maintenance warranty and post warranty
SRTP COMPLIANT SYSTEM ACTUALLY IMPLEMENTED
Customer: FINCANTIERI (IT)
| CARNIVAL UK GROUP | IT | M/n BRITANNIA |
| PRINCESS CRUISES | USA | M/n ROYAL – REGAL – MAJESTIC |
| MSC CROCIERE | IT | Under construction |
| SILVER SEA CRUISES | USA | M/n MUSE |
| VIKING CRUISES | USA | M/n STAR – SKY – SEA |
STANDARD ON-BOARD SYSTEM IMPLEMENTED
| COMPAGNIE DU PONAN | FR | M/n AUSTRALIA – LE BOREAL |
| SILVER SEA CRUISES | USA | M/n SILVER SPIRIT |
| SOC. DES TRAVERSIERS | CA | M/n QUEBEC |
EQUIPMENT USED

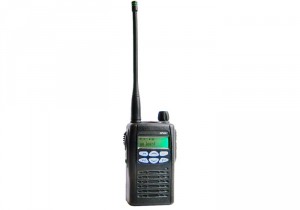

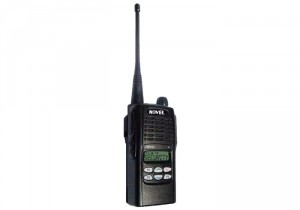

UHF ON BOARD handheld radio
- 255 Channels
- Li-Ion battery
- Scrambler VOX
- Emergency button
- IP55 e MIL STD 810F
- Compliant with EN 300-720-2 “ON BOARD” directive
UHF ON BOARD handheld radio
- 255 Channels
- Li-Ion battery
- Scrambler VOX
- Emergency button
- IP55 e MIL STD 810F
- Compliant with EN 300-720-2 “ON BOARD” directive

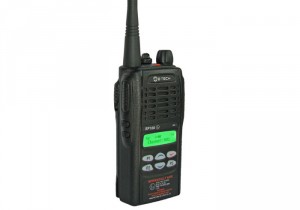

INTRINSICALLY SAFE UHF ON BOARD handheld radio
- ATEX: II 2G Ex ib IIC T4 Gb + IECEx: Ex ib IIC T4
- 255 Channels
- Ex-ATEX Li-Ion battery
- Emergency button
- MIL STD 810F
- Compliant with EN 300-720-2 “ON BOARD” directive

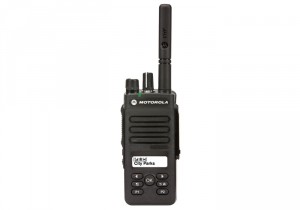

Ricetrasmettitore portatile digitale Mototrbo™
Le radio della Serie DP2000 offrono l’audio migliore della categoria in una soluzione scalabile per soddisfare le vostre esigenze di comunicazione. E poiché sono anche interoperabili con l’analogico, potrete effettuare il passaggio al digitale secondo i vostri tempi e il vostro budget.
- 128 Canali
- Batteria al litio
- IP55 e MIL STD 810C/D/E/F/G
Mototrbo™ digital handheld radio
The DP4400/DP4401 portable radio delivers unrivaled voice and data communications with optional integrated GPS and Bluetooth.
- 32 channels
- Li-Ion battery
- IP57 and MIL STD 810C/D/E/F/G
Intrinsically safe Mototrbo™ digital handheld radio
DP4400 model intrisically safety certified according to USA regulation for use in class I, II, III, Division 1, Group C,D,E,F,G.
- 32 channels
- Li-Ion battery
- IP57 and MIL STD 810C/D/E/F/G
Intrinsically safe Mototrbo™ digital handheld radio
Motorola’s MOTOTRBO DP4000 Ex Series ATEX radios provide high quality communication with comprehensive user safety and class leading ATEX specifications allowing use when in environments containing potentially explosive gas and dust.
- ATEX and IECEx approval for gas, dust, mines
- 32 Channels
- Ex Li-Ion battery
- IP67 and MIL STD 810D/E/F/G

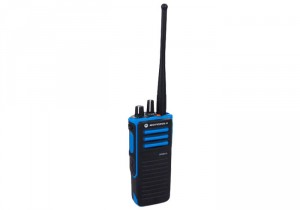

Intrinsically safe Mototrbo™ digital handheld radio
The fully-featured DP4801 Ex ATEX certified portable radio delivers unrivalled voice and data communications with integrated GPS, text messaging, full-colour display with day/night mode to make reading text messages easier and best-in-class audio that includes Intelligent Audio and customizable voice announcements.
- 1000 Channels
- Ex Li-Ion battery
- IP67 and MIL STD 810D/E/F/G

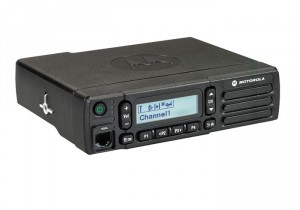

Mototrbo™ digital mobile radio
As part of the MOTOTRBO family of radios, the DM2600 delivers the best in digital radio technology, with features like integrated voice systems capability, twice the calling capacity, and clearer voice communications.
PRODUCT DETAILS
Mototrbo™ digital mobile radio
This fully-featured mobile transforms your enterprise, delivering unrivaled voice and data communications with integrated Bluetooth audio and text messaging.
PRODUCT DETAILS

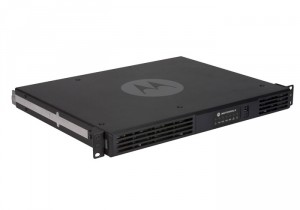

Mototrbo™ digital radio repeater
With its sleek form factor and low power consumption, the MOTOTRBO SLR 5500 is engineered for low cost of ownership. Combined with the 50W transmit output power and digital error correction, this gives you clear voice quality, even in the most adverse conditions.
The SLR 5500 supports the full MOTOTRBO feature set, and is compatible with all the MOTOTRBO system architectures: single site conventional, IP Site Connect, Capacity Plus (single- and multi-site), Capacity Max and Connect Plus.
Digital UHF pager
- 4 rows, 20 characters display
- Vibration or tone alarm
- No radio signal alarm
- Permanent message memory even in case of battery replacement
POCSAG PAGER
Professional paging system
I.SEARCH is a professional paging system and, thanks to its modular architecture, is suitable for every applications.
One of the main advantages of I.SEARCH is the capability of merging local paging (on-site) and national paging (off-site) with GSM SMS, and moreover can be interfaced with other paging equipment as DECT mobile telephones.

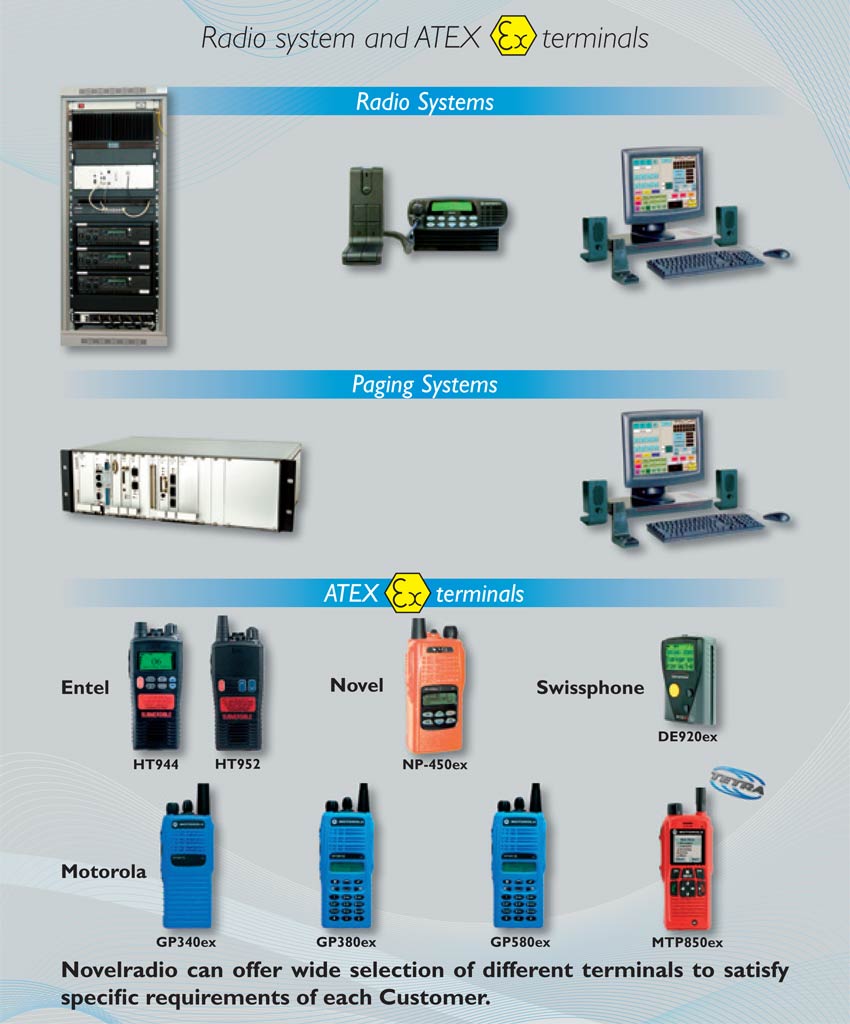

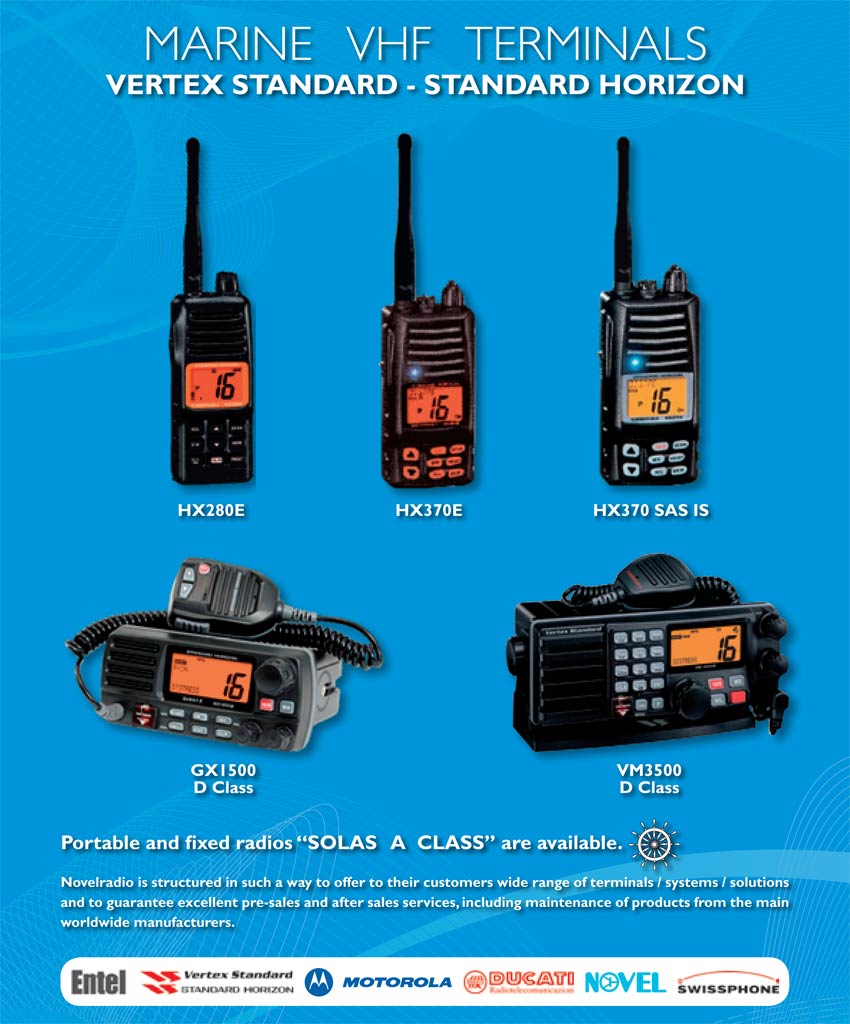

Novelradio can supply “ON BOARD” Radio systems and equipment for cruise ships and big vessels, also for hazardous environments.
Can also provide a wide range of services, including maintenance and service of most known brand of radio communications.
