The paging system described is designed and manufactured for marine applications and consists of:
- Server, based on Linux operating system, that include:
- interface for PABX and mobile devices (DECT, IP_DECT, Wi-Fi, GSM network)
- alarm system and ERP/CRM software applications
- SMTP server for email handling, decoding and send alarm to pagers
- database and datalog
- Encoder/transmitter unit driven from Server
- Ethernet switch to connect the server to all the other parts constituting the system, including LAN
- RS485 interfaces transmitting alarms
- Alarm unit based on remote contacts activation
- SIP protocol traffic originated from PABX
OPERATION
Paging traffic is generated from PABX, from Operator consoles and from all the alarm sources:
- Traffic from PABX is based on SIP protocol.
- Traffic from Console is delivered through LAN (max 240 chars)
- Traffic from alarm sources can have different routings:
- via RS485 interface with protocol ESPA4.4.4 (max 240 chars)
- via dry contacts (max 240 chars)
- Different priorities can be assigned to the traffic management
The server forwards the outgoing calls via dedicated RS232 interface towards POCSAG Encoder, transmitter and power amplifier guarantee the right RF power level to satisfy the radio coverage on board through the radiating cable system.
SYSTEM ADMINISTRATOR
The system Administrator can:
- set the system parameters
- configure Operator Console
- create/modify the beeper’s database
- create groups of beepers
- create alarm messages and list of beepers for the alarms generated from contacts
- access the complete message log
- generate calls to beepers, similarly to the operator console
OPERATOR CONSOLE
The operator console allows to:
- generate calls towards beeper/predefined group of beepers
- access the log of all its own calls generated
- set its own password at its first log-in

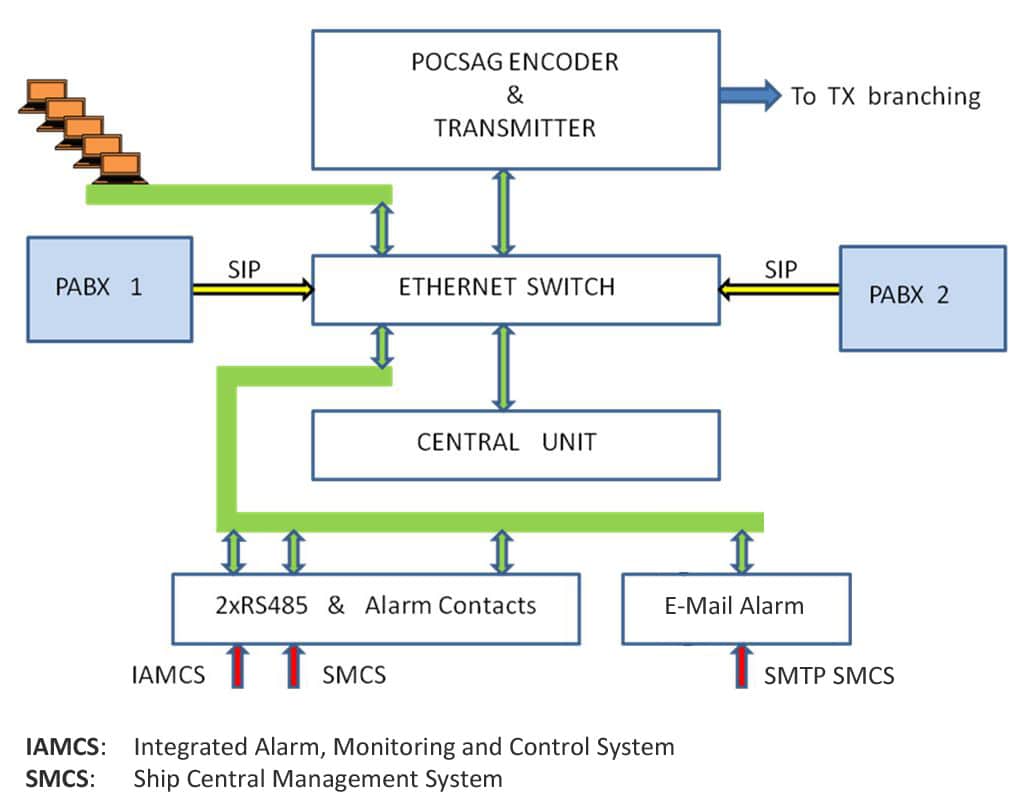

Block diagram of the system
The realization and maintenance of the above systems is carrying out by Novelradio, with its own organization, providing:
- Specific design according to customer requirements
- Technical documentation
- Supply of equipment for the system realization
- Supply of radio terminal
- System installation
- Operational staff training
- Commissioning and testing certification
- On-line remote assistance
- On board assistance and maintenance
- Changes/updates of existing systems to regulations in force
RELATED EQUIPMENT
Digital UHF pager
- 4 rows, 20 characters display
- Vibration or tone alarm
- No radio signal alarm
- Permanent message memory even in case of battery replacement
POCSAG PAGER
ATEX POCSAG PAGER
- ATEX certified: II 3G Ex IIC T4 Gc
- Rugged body
- Water resistant – IP67
- Long battey life, up to 4000 hours

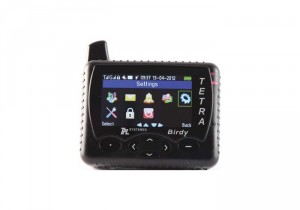

TETRA Pager
NEW Professional paging system

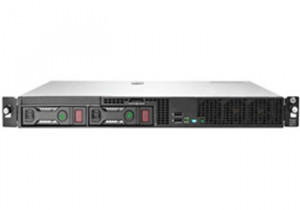

Phoenyx is the paging system developed by Novelradio: based on Linux server, is equipped with interface for PABX, mobile devices (DECT, IP-DECT, Wi-Fi, GSM network), SMTP server, alarm systems, ERP & CRM application software.
PRODUCT DETAILS
Professional paging system

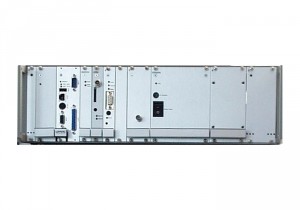

I.SEARCH is a professional paging system and, thanks to its modular architecture, is suitable for every applications.
