SLR5500

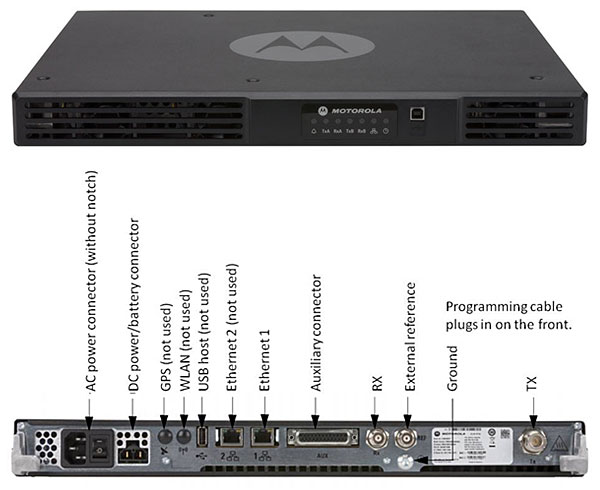

Mototrbo™ digital repeater – Motorola SLR5500

slr5500

For your business to be successful, you need dependable voice and data communications that reach every corner of your operations. The MOTOTRBO SLR 5500 Repeater delivers high performance, high reliability two-way radio service with all the features you need to connect your workplace whether you’re in the field or on the factory floor.

With its sleek form factor and low power consumption, the MOTOTRBO SLR 5500 is engineered for low cost of ownership. And with a huge leap forward in technology, it represents the next generation in repeaters as the cornerstone of a MOTOTRBO professional two-way radio system.

Whether you need the simplicity of a single site conventional system, or the powerful trunking capabilities of Capacity Plus, Linked Capacity Plus or Connect Plus, the SLR 5500 delivers the power of digital two-way radio to your workforce.

  • Continuous Duty Cycle Operation, VHF and UHF, 100% at 50W
    •
  • High sensitivity of receiver
    •
  • Cooling system optimized
    •
  • High efficiency: slim and compact with low current consumption
  • Pluggable architecture
    •



FEATURES AND SPECIFICATIONS

General
Frequency 136-174 Mhz (VHF), 400-470 MHz (UHF)
Channel capacity 64
RF power 1-50W
Power supply 100-240 Vac
Dimensions 483 (W) x 44 (H) x 370 (D) mm
Weight 8.6 Kg
Receiver
Channel spacing 12.5/20/25 kHz
Sensitivity in analog mode (20 dB SINAD) 0,22µV
Sensitivity in digital mode(5% BER) 0,22µV
Intermodulation 82-73dB
Adjacent channel selectivity 63-70-70 dB
Audio distortion <1%
Conducted spurious emission 95/90 dB
Transmitter
RF power 1-50W
FM noise -45/-50 dB
Adjacent channel power -68/-72 dB
Audio distortion <1%

DOCUMENTS

Datasheet repeater Motorola SLR5500

Brochure Motorola Mototrbo Capacity Plus
