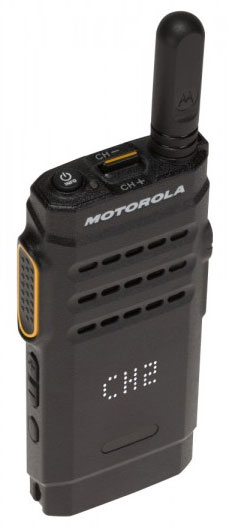

Handheld radio Mototrbo™ SL1600
MOTOTRBO™ SL1600 provides reliable push-to-talk communication for the mobile, everyday user in an ultra-slim and rugged profile. Whether you’re working in the field or at a black-tie event, the SL1600 is boldly designed to keep you efficiently connected.
Measuring only 22mm thick, the SL1600 is ultra-portable. A stubby antenna, curved edges and rugged frame make the SL1600 the perfect work partner. It can be easily carried in pockets or bags without snagging or bulging.
Designed for easy and intuitive use, the SL1600 has a side volume control, dedicated power button, prominent push-to-talk button, and top toggle channel switch to enable quick one-hand access. Channel “fast toggle” allows users to scroll through 10 channels at a time.
FEATURES AND SPECIFICATIONS
| Frequency | 403 – 470 MHz (UHF) |
| Channel capacity | 99 |
| Channel spacing | 12,5 / 20 / 25 KHz |
| Battery | Li-Ion 2300 mAh |
| Battery life | Up to 14 hours with 5/5/90 profile |
| Dimensions | 55 (W) x 126 (H) x 22 (D) mm |
| Weight | 169 gr |
| Package content | Handheld radio, Li-Ion battery, battery charger, belt clip, antenna and user manual |
| Digital Sensitivity(5% BER) | 0,3µV |
| Spurious emmission | -57dBm |
| Audio power | 0,5W |
| RF power | 1-2W analog mode; 1-3W in digital mode |
| Conducted Emission | -36 dBm |
DOCUMENTS
Datasheet radio Motorola SL1600
