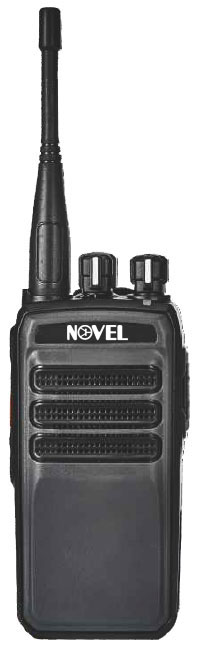

Handheld UHF DMR radio
Novel NDP650
For land and marine “ON-BOARD” use
Marine approval according to
– EN300 720 V2.1.1 (2017-1)
– EN 60945:2002
Working in potentially harsh environments such as construction sites, harbors, manufacturing or petrochemical plants require a reliable and durable two-way radio to guarantee safety and enhance working efficiency. DMR portable radio NDP650 provides super audio quality, versatile functionality, durability, security and flexibility to solve problems faced in the work area, achieving great operating values.
KEY FEATURES AND BENEFITS
- Rugged design
- Durable battery
- Improved audio quality
- Higher channel capacity
- Versatile call services (individual, group, emergency, remote monitor)
- Text message
- Secure communication
SPECIFICATIONS
Generali
| Frequency | 400 – 470 MHz (UHF) |
| Channel capacity | 16 |
| Channel spacing | Analog: 12,5/25 KHz Digital: 12.5 KHz |
| Battery | Li-ion 2000 mAh |
| Battery life | up to 16 hours with 5/5/90 profile |
| Dimensions | 54 (W) x 163 (H) x 31 (D) mm |
| Weight | 275 gr |
| Working temperature | -30 / +60°C |
| Package content | Radio, Li-Ion battery, charger, belt clip, antenna and user manual |
Receiver
| Sensitivity | 0,25µV @12.5KHz |
| Intermodulation | 65dB |
| Adjacent channel selectivity | 60dB @ 12,5Khz |
| Spurious response rejection | 70dB |
| Audio distortion | <3% |
Transmitter
| RF Power | 1/4W (UHF) |
| Adjacent channel power | 60 dBm |
| Radiated spurious emission | -36 dBm <1GHz, -30 dBm >1GHz |
| FM noise | 45dB @ 25kHz ; 40dB @ 12.5KHz |
| Digital Vocoder | AMBE +2™ |
| Digital protocol | ETSI TS 102 361-1, -2, -3 |
DOCUMENTS
Datasheet radio UHF DMR Novel NDP650
