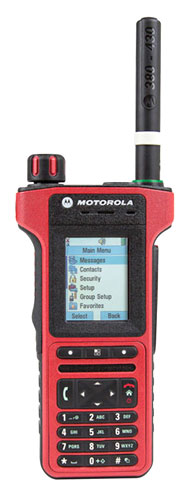

Handheld ATEX TETRA radio Motorola MTP8000Ex series
MTP8500Ex : with keyboard
MTP8550Ex : with alphanumeric keyboard
The MTP8000Ex Series radios set a new standard in TETRA ATEX portables. From their form to their function, these new radios have been carefully engineered to address workers’ needs and offer the ultimate in safe, reliable and efficient communications in hazardous environments.
Meeting the latest V6 ATEX and IECEx standard, this next generation of TETRA radios represents a significant step forward in mission critical communications designed for end-users who work in areas with potentially explosive gases or chemical vapours, flammable liquids or combustible dust.
The MTP8000Ex Series TETRA ATEX radios deliver powerful audio, enhanced coverage, extended battery life, greater ruggedness, advanced ergonomics and increased usability, so personnel working in the most extreme environments have the ability to work safer, work smarter and work anywhere.
FEATURES AND SPECIFICATIONS
| Frequency | 350 – 470 MHz , 800 MHz |
| Audio Power | >1.2W |
| Battery life | up to 16 hours with 5/5/90 profile |
| Bluetooth | Integrated for audio and data |
| Protection degree | IP64/65/66/67 |
| Operating temperature | -30°C / +55°C |
| Transmitter | Power class 3L and 4 |
| Receiver | Class A and B |
| Static sensitivity of receiver | -118dBm typical |
| Dynamic sensitivity of receiver | -109dBm typical |
| Voice | Full Duplex, PABX, PSTN, Emergency |
| Position | GPS/Glonass |
| Display | Front: color, 240×320 pixel
Top: color, 200×112 pixel |
| Contact list | Up to 1000 wtih 6 numbers per contact |
| Regulations | ATEX: EN60079-0:2012 , EN60079-11:2012IECEx: IEC 60079-0:2011, IEC 60079-11:2011 |
| Gas classification | II 2 G Ex ib IIC T4 Gb -20°C+55°C IP65/66/67 |
| Dust classification | II 2 D Ex ib IIIC T90°C Db -20°C+55°C IP65/66/67 |
| Mining environment classification | I M2 Ex ib I Mb -20°C+55°C IP65/66/67 |
