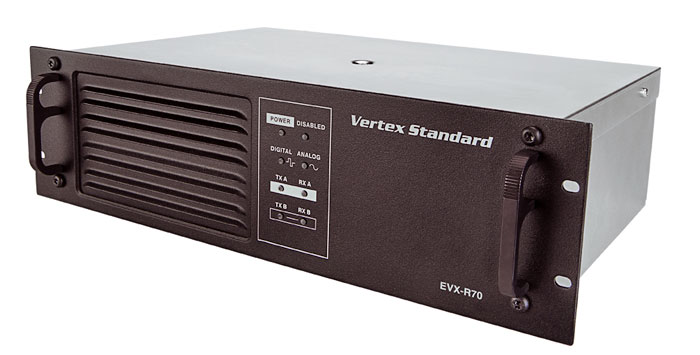

DMR Repeater EVX-R70 – VERTEX STANDARD
FEATURES AND SPECIFICATIONS
General
| Frequency | 136-174 Mhz (VHF)
403-470 MHz ; 450-527Mhz (UHF) |
| Channel capacity | 16 |
| RF output | 1-25W (lor power) or 25-45W (high power) VHF
1-25W (pow power) or 25-40W (high power) UHF |
| Power supply | 100-240 Vac |
| Dimensions | 482.6 (W) x 132.6 (H) x 296.5 (PD mm |
| Weight | 14 Kg |
Receiver
| Sensitivity in analog mode (12 dB SINAD) | 0,3µV |
| Sensitivity digital mode (5% BER) | 0,3µV |
| Intermodulation | 78dB (VHF), 75dB (UHF) |
| Adjacent channel selectivity | 80dB (VHF), 75dB (UHF) |
| Audio distortion | 3% |
| Conducted spurious emission | -57 dBm |
Transmitter
| Output power | 1-25W (low power) or 25-45W (high power) VHF
1-25W (low power) or 25-40W (high power) UHF |
| FM noise | -40/-45 dB |
| Adjacent channel power | -60/-70 dB |
| Audio distortion | 3% |
| Audio distortion | ETSI TS 102 361-1, -2, -3 |
DOCUMENTS
Datasheet DMR repeater EVX-R70 Vertex-Standard
