Handheld ATEX digital radio Motorola Mototrbo™ DP4000 EX series
DP4401 Ex : without display, UHF or VHF
DP4801 Ex : with display and keyboard, UHF or VHF
KEEPING YOU SAFER IN THE TOUGHEST ENVIRONMENTS
Threats from explosive gas or combustible dust, on an oil rig or in an open mine, your workers confront them daily. Safe, reliable communication is absolutely critical in such dangerous environments. That’s where the power and performance of MOTOTRBO digital radio stands out.

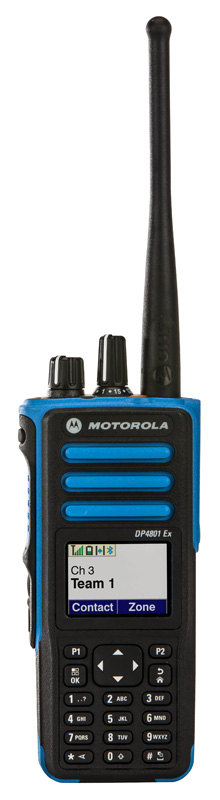

The fully-featured DP4801 Ex ATEX certified portable radio delivers unrivalled voice and data communications with integrated GPS, text messaging, full-colour display with day/night mode to make reading text messages easier and best-in-class audio that includes Intelligent Audio and customizable voice announcements.
Available in UHF and VHF frequency bands, the DP4801 Ex features a 5-line display, full keypad, up to 1,000 channel capacity, five programmable buttons, emergency button, man down and lone worker functions and IP67 rating for submersibility.
FEATURES AND SPECIFICATIONS
| Frequency | 136 – 174 MHz (VHF) |
| 403 – 527 MHz (UHF) | |
| Channel capacity | 2 (DP4401 Ex) o 250 (DP4801 Ex) |
| Channel spacing | 12,5 – 20 – 25 KHz |
| Battery | Li-Ion 7,4V |
| Battery life | up to 19 hours with 5/5/90 profile |
| Dimensions | 56.7 (W) x 138.5 (H) x 39.8 (D) mm |
| Weight | 455-482 gr, depends on battery installed |
| Package content | Handheld radio, Li-Ion battery, battery charger, belt clip, antenna and user manual |
| Sensitivity (12dB SINAD) | 0,25µV typical |
| Channel selectivity | 60dB at 12,5Khz / 70dB at 20/25 Khz |
| Audio power | 0,5W |
| Audio distortion | 3% typical |
| RF power | 1W |
| Adjacent channel power | 60-70 dBm |
| FM noise | 40-45 dB |
| Audio distortion | 3% |
| Gas protection | ATEX: Class II 2G Ex ib IIC T4 Gb IECEx: Ex ib IIC T4 Gb |
| Dust protection | ATEX: Class II 2D Ex ib IIIC T130 °C Db IECEx: Ex ib IIIC T130°C Db |
| Mining protection | ATEX: Class I M2 Ex ib I Mb IECEx: Ex ib I Mb |
DOCUMENTS
Datasheet radio ATEX Motorola DP4000 Ex series
Accessories for radio ATEX Motorola DP4000 Ex series
