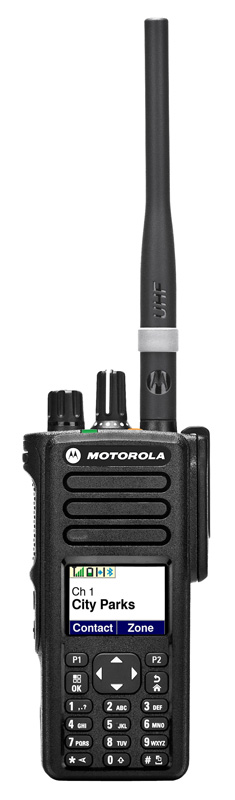

Handheld two-ways digital radio Motorola Mototrbo™ DP4000 series
DP4400 : without display (UHF or VHF)
DP4600 : with display (UHF or VHF)
DP4800 : with display and keyboard (UHF or VHF)
Offering a full set of features and rich functionality in one powerful device, DP4000 Series portable radios are ideal for enterprises such as manufacturing, utilities, or transportation. Delivering superb audio quality, full colour display, integrated Bluetooth for audio and data, enhanced GPS, and text messaging, the DP4000 Series offers expert applications customized to your business.
The series also features support for up to 1000 channels and has up to 5 programmable buttons plus a dedicated emergency button. The radios are IP57 rated (dustproof and submersible in water), with optional UL-certified HazLoc rating to fully empower your demanding workforce.
FEATURES AND SPECIFICATIONS
| Frequency | 136 – 174 MHz (VHF) |
| 403 – 527 MHz (UHF) | |
| Channel capacity | 32 (DP4400) or 1000 (DP4600-4800) |
| Channel spacing | 12,5 – 20 – 25 KHz |
| Battery | Li-Ion 2350/2250/1600mAh |
| Battery life | up to 18 hours with 5/5/90 profile |
| Dimensions | 55 (W) x 130 (H) x 39 (D) mm |
| Weight | 323-426 gr, depends on battery installed |
| Package content | Handheld radio, Li-Ion battery, battery charger, belt clip, antenna and user manual |
| Sensitivity (12dB SINAD) | 0,22µV typical |
| Channel selectivity | 60dB at 12,5Khz / 70dB at 20/25 Khz |
| Audio power | 0,5W |
| Audio distortion | 3% typical |
| RF power | 1/5W (VHF) or 1/4W (UHF) |
| Adjacent channel power | 60-70 dBm |
| FM noise | 40-45 dB |
| Audio distortion | 3% |
