Digital mobile radio Mototrbo™ DM1000 series
DM1400 : with 2 digits display and limited keyboard (UHF or VHF)

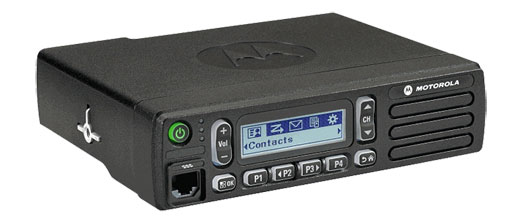

DM1600 : with LCD display and menu keyboard (UHF or VHF)
Your people are on the move, delivering cargo, picking up consignments, driving passengers to their destinations. You need to keep them in touch and on track efficiently. And you want to make sure the radios they use are as effective and adaptable as possible. The MOTOTRBO DM1000 Series mobile radios offer the benefits of the latest technology from superior audio to greater coverage – all at an affordable price.
FEATURES AND SPECIFICATIONS
General
| Frequency | 136 – 174 MHz (VHF) |
| 403 – 470 MHz (UHF) | |
| Channel capacity | 16 (DM1400) or 160 (DM1600) |
| Channel spacing | 12,5 – 20 – 25 KHz |
| Dimensions | 169 (W) x 44 (H) x 134 (D) mm |
| Weight | 1,3 Kg |
| Package content | Microphone, mouting support, power cord and user manual |
Receiver and audio
| Sensitivity (12dB SINAD) | 0,22µV typical |
| Channel selectivity | 60dB at 12,5Khz / 70dB at 20/25 Khz |
| Audio power | 4W (internal), 7,5W (external – 8Ω), 13W (external – 4Ω) |
| Audio distortion | 3% typical |
Transmitter
| RF power (low) | 1/25W (VHF e UHF) |
| RF power (high) | 25/45W (VHF) or 25/40W (UHF) |
| Adjacent channel power | 60-70 dBm |
| FM noise | 40-45 dB |
| Audio distortion | 3% |
