In November 2012, the IMO’s (International Maritime Organization) Maritime Safety Committee set out a number of measures designed to improve fire safety at sea.
SOLAS Chapter II-2, Regulation 10.10.4 regulation must be met by every commercial and passenger ship before 1st July 2018, requiring that every party of fire fighters have dedicated handheld radios compliant with ATEX & IECEX directives about explosive atmospheres.
Novelradio can advise you in choosing the more suitable solution based on your needs and in compliance with new regulations
Purpose of this regulation is to increase safety on ship, and requires that each party of firefighters must have at least 2 dedicated handheld radios and accessories ATEX/IECEX certified, suitable for use in potentially explosive atmospheres.
Failing in observing this regulation before 1st July 2018 can result in being fined by port authorites, and eventually have the vessel detained at port until proper equipments are installed.
Novelradio propose 3 different solutions to meet this regulation base on radio:
|
|
|
|
For ships constructed on or after 1 July 2014, a minimum of two two-way portable radiotelephone apparatus for each fire party for fire-fighter ́s communication shall be carried on board. Those two two-way radiotele – phone apparatus shall be of an explosion-proof type or intrinsically safe. Ships constructed before 1 July 2014 shall comply with the requirements of this paragraph not later than the first survey after 1 July 2018.
INTRISICALLY SAFE UHF ON BOARD handheld radio
- ATEX: II 2G Ex ib IIC T4 Gb + IECEx: Ex ib IIC T4
- 255 Channels
- Li-ion battery Ex-ATEX
- Emergency button
- MIL STD 810F
- Compliant with EN 300-720-2 “ON BOARD” directive
PTT unit (Push-To-Talk)
- ATEX certified
- Works as interface between radio and earpiece/microphone in the helmet
- Large PTT button PTT easy to use with gloves
Datasheet radio accessories Atex – Novel

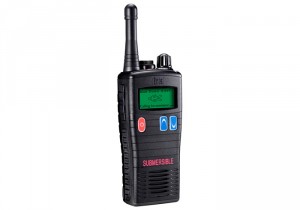

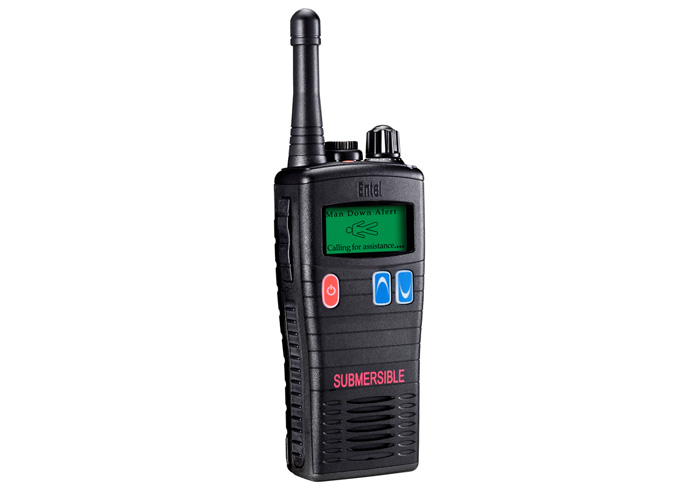

INTRINSICALLY SAFE UHF handheld radio
- ATEX: II 2G Ex ib IIA T4 (HT883) / II 2G Ex ib IIC T4 (HT983)
- 255 Channels
- Li-ion battery Ex-ATEX
- LCD display
- MIL STD 810C/D/E/F
- IP68, submergible for 1 hour at 5 meters

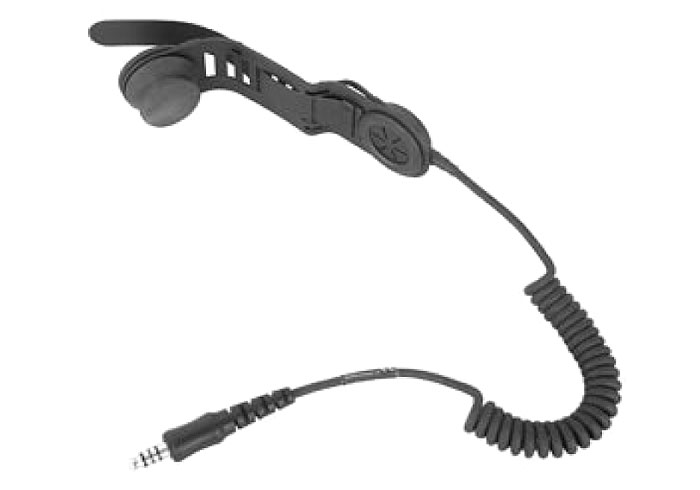

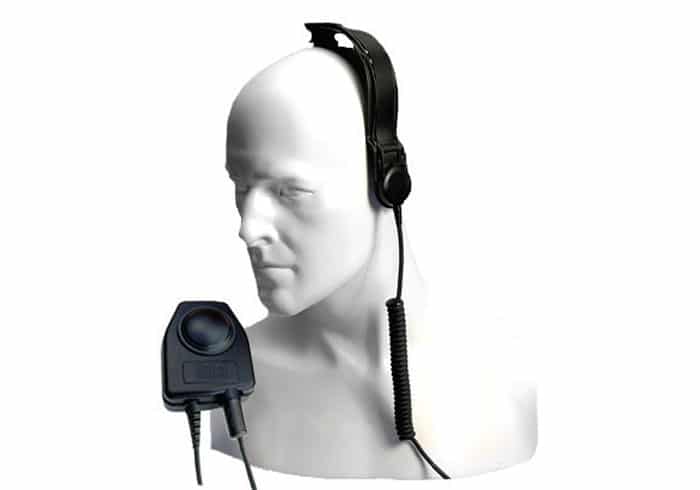

Earpiece with skull microphone
- ATEX & IECEx approved
- High performance bone conductive microphone
- Unique fastening-strap system fits all helmet designs
- IP54 robust durable design
- Supplied with Submersible quick release PTT unit (IP67)

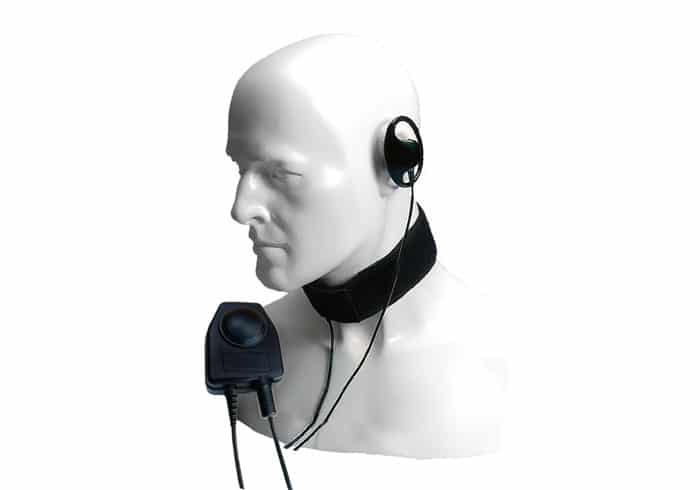

Earpiece with throat microphone
- ATEX & IECEx approved
- High performance bone conductive throat mic
- Soft-feel washable neck band
- IP54 robust durable design
- Supplied with Submersible quick release PTT unit (IP67)

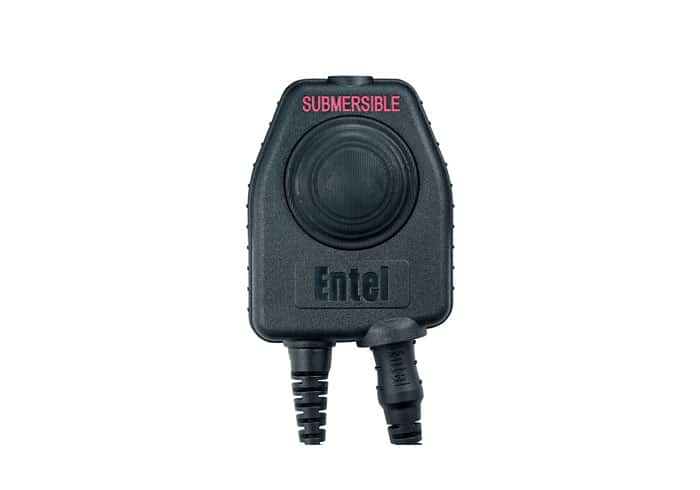

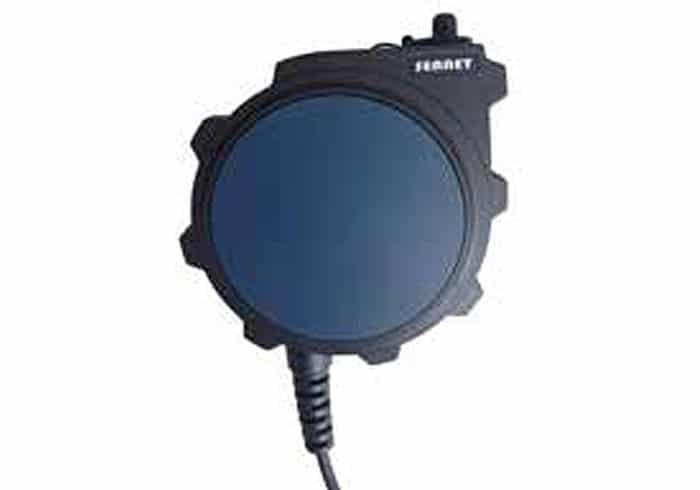

PTT
unit
- Submersible, IP67
- Rugged construction, designed to withstand the harshest environments
- Large PTT button, ideal for gloved hand use
- Atex&IECex Intrinsically safe
Datasheet radio accessories Atex – Entel
INTRINSICALLY SAFE Mototrbo™ digital handheld radio
- ATEX: II 2G Ex ib IIC T4 Gb + IECEx: Ex ib IIC T4 Gb
- 32 Channles
- EX Li-ion battery
- IP67 and MIL STD 810D/E/F/G
INTRINSICALLY SAFE Mototrbo™ digital handheld radio
- ATEX: II 2G Ex ib IIC T4 Gb + IECEx: Ex ib IIC T4 Gb
- LCD color display and keyboard
- 1000 Channels
- EX Li-ion battery
- IP67 and MIL STD 810D/E/F/G

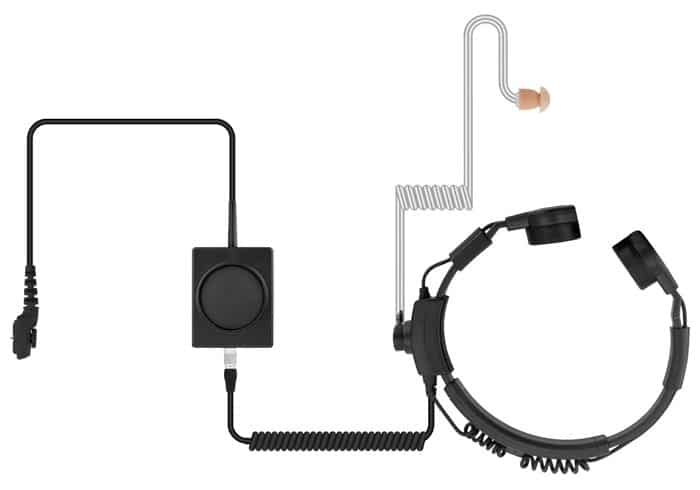

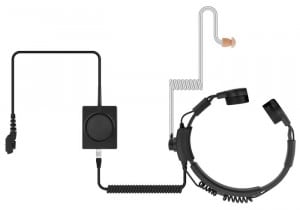

Earpiece with throat microphone
- ATEX & IECEx II 2G Ex ib IIC T4 approved
- Adjustable throat band for a comfortable feel
- Acoustic tube earphone
- PTT unit included

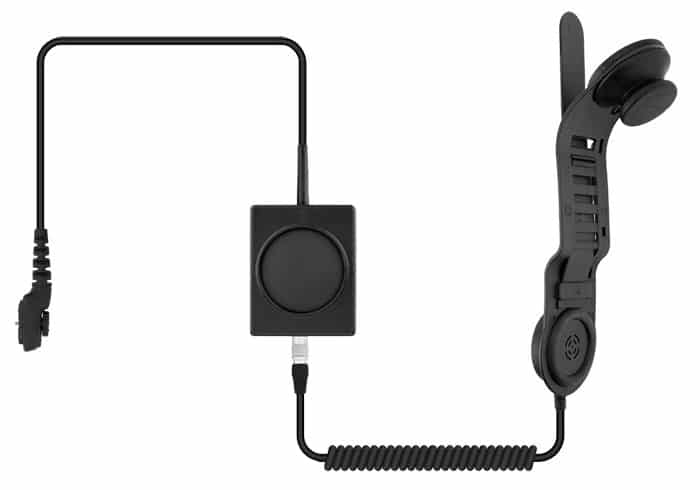

Earpiece with skull microphone
- ATEX & IECEx II 2G Ex ib IIC T4 approved
- Skull microphone provides clear communication in all environments
- Easily to install in most helmets with just the use of velcro tape
- PTT unit included
Brochure Atex accessories Titan for Motorola radio
